Size Chart

[kitdang]

Are there better ways of handling size charts in Miva instead of using an image for each product?

[Mark Hood]

I use a custom field with an iframe around it. I imagine a better way but it works.

<mvt:if expr="NOT ISNULL l.settings:product:customfield_values:customfields:SizeChart">
<label>Size Chart</label>
<div>
<iframe src="&mvt:product:customfield_values:customfields:SizeChart;" width="100%" height="600px"></iframe>
</div></mvt:if>

[RTHOMASDESIGN]

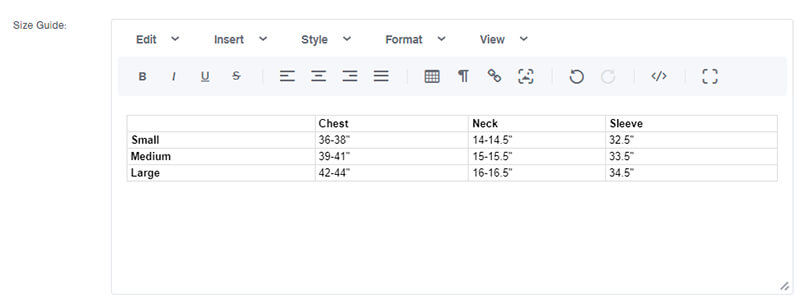

I'd recommending creating a product custom field with "Text-Area" as the field type. You could then create an HTML table and manage them from there. Probably easier in the long run to just paste templates into the text-area.

Something like this:


-Ryan

[kitdang]

Thank you Mark and Ryan.

I like the text-area idea over an image for sure. However, the issue I see with a product custom field is that if a vender changes their size charts, we have to go through each product to update?

[RTHOMASDESIGN]

Thank you Mark and Ryan.

I like the text-area idea over an image for sure. However, the issue I see with a product custom field is that if a vender changes their size charts, we have to go through each product to update?

Yes, but I would imagine that's easier than having to update all of the images. You could do a CSV export/import to update all of the affected products. When I need to manually update thousands of products... I'll export the products to CSV. Then within the CSV sort the products by manufacturer > then by the custom field > update the custom field(s)-- then import everything back in. Obviously, you need to be very careful and make sure that all of the import settings are correct.

-Ryan

[Mark Hood]

My custom field iframe idea is mostly because our different vendors of course have their own size chart and many of them multiple ones mens, women's, hats etc,.
I just update the image or html and it changes for all the products it would apply and it won't show the tab if nothing has been entered.

[Kent Multer]

If you have an attribute for each dimension (e.g. waist and length for pants), you can arrange the attributes in a grid layout, and include the measurements (e.g. "32-36 in.") in the attribute prompts. Then the size chart is generated automatically for each product. You can even hook it into your inventory counts, so that customers can only click on an item that's in stock.

"Easier said than done ..." The coding may be fairly complex. I've done it for a couple of clients; you can drop me a line if you need some help.

[Mark Hood]

Pants that are 36X30 do not generally need a size chart for us...

[Bruce - PhosphorMedia]

Thank you Mark and Ryan.

I like the text-area idea over an image for sure. However, the issue I see with a product custom field is that if a vender changes their size charts, we have to go through each product to update?

Depending on how many you have, you might want to use a ReadyTheme content section AND a custom field.

The custom feild determines the readytheme content section to call. For example:

IF custom field EQ 'levis'
mvt:item name="readytheme" param="levis_size_chart"
ELSEIF custom field EQ 'wrangler'
mvt:item name="readytheme" param="wrangler_size_chart"

etc

[oliverands]

I use an old school approach that I think is similar to what Bruce suggests.

I have a custom field on each product for which size chart to display. I also have a page created for each different size chart with a name that matches the value in the custom field. These are basically just tables with the size chart data. Then I have this code in my PROD template that pulls in and displays the size chart based on the content of the custom field.

<mvt:if expr="NOT ISNULL l.settings:product:customfield_values:customfields :sizing">
<li id="tab-size-chart" class="simple tab-pane"><mvt:item name="toolkit" param="vrender|l.all_settings:product:customfield_ values:customfields:sizing" /></li>
</mvt:if>

If a size chart changes, you update once and it applies to all products where it is assigned.

[Bruce - PhosphorMedia]

yup, basically the exact same. i just use Content sections to make it more foolproof when the client edits the content :)

BTW: might want to replace vrender with

<mvt:do name="l.result" file="g.Module_Feature_TUI_MGR" value="TemplateManager_Render_Page( 'ABUS' )" />
